Electrolytic Capacitors:

Electrolytic Capacitors are by and large utilized as a part of the applications where vast capacitance qualities are required. These electrolytic capacitors have a metallic anode covered with an oxidized layer for the most part utilized as its dielectric. Another terminal of a capacitor is a non-strong or strong electrolyte. The majority of these type of capacitors are polarized. These capacitors are arranged by dielectric material. Basically these are arranged into three classes, they are given as

  1. Aluminum electrolytic capacitors: Here aluminum goes about as its dielectric.
  2. Tantalum electrolytic capacitors: Here tantalum confined oxide goes about as its dielectric.
  3. Niobium electrolytic capacitors: Here niobium confined oxide goes about as its dielectric.

Electrolytic Capacitor
Electrolytic Capacitor
Electrolytic Capacitor symbol
Symbols
Generally the permittivity of tantalum confined oxide is very nearly three times more prominent than the permittivity of aluminum dioxide, however this permittivity decides just the measurements. For the most part three kinds of electrolytes are used.They are as per the following:

  1. Non strong (wet or fluid): These capacitors have the conductivity almost 10ms/cm and these are accessible with ease.
  2. Strong manganese oxide: These capacitors have the conductivity almost 100ms/cm furthermore have high caliber and stability factor.
  3. Strong conductive polymer: These kind of capacitors have conductivity around 10000 ms/cm furthermore the ESR estimations of <10mω.
Electrolytic Capacitors are by and large utilized as a part of direct (DC) control supply circuits. These are likewise utilized as a part of the uses of coupling and decoupling to decrease the ripples in the voltage, because of their extensive capacitance values and their little size. One of the fundamental impediments of electrolytic capacitors is their low working voltage.

Electrolytic capacitor's construction

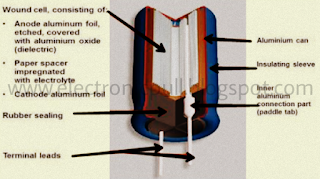

Electrolytic Capacitor's Construction
